heirowDebug.WPF 2026.10.24.1

heirowDebug 2026

Live objects. Clear timelines. Visual debugging.

Version 2026.10.23.5 · Windows · .NET 10

heirowDebug provides live object inspection, editing and typed timelines for WPF and native Project-Z applications. Both implementations live in this repository and are published as separate NuGet packages: heirowDebug.WPF and heirowDebug.ProjectZ. This is the 2026 release of the former Jack-Debug project.

Support heirowDebug · Optional GitHub sponsorship, with monthly tiers from $1 to $100.

Current packages and Project-Z tools

dotnet add package heirowDebug.WPF --version 2026.10.23.5
# For a native Project-Z application:
dotnet add package heirowDebug.ProjectZ --version 2026.10.23.5

The Project-Z suite includes the native live inspector, a running-process launcher/startup hook, and a native protection page using the same protection engine and pre-runtime launcher as the WPF tool. It also includes a runnable VB scene sample. See Project-Z integration and behavior.

The native injector uses the same XAML layout as the WPF injector, with a directly selectable process table, keyboard navigation, scrolling, and 16x AA/AF.

dotnet run --project heirowDebug.ProjectZ.Tools -c Release

Sampling and edits run on the owning scene thread when the watcher is attached with AttachScene(scene). Reflection, history retention and recursive expansion are bounded. XNA points, vectors, rectangles and colors have native visualizations. The native inspector shows numeric/time axes, current channel values and accurate open/closed tree arrows. Changed tree values glow green behind their text, fading to transparent in one second; each new change restarts the fade. Expanded struct components such as Position.X keep their selection and numeric history as the parent updates. A dual-thumb history slider, imported from the WPF XAML, has editable Min/Max percentages; value inputs disable spelling. Moving Max below 100% freezes the graph as a snapshot while recording continues. Min/Max then navigate that captured history. Set Max to 100% to resume live updates.

INotifyPropertyChanged properties update from change events. Select an ordinary managed property and choose Hook get/set to capture accessor calls immediately, including multiple transitions within one frame. Fields retain bounded sampling. See property capture and runtime limitations.

Get the libraries from NuGet: heirowDebug.WPF and heirowDebug.ProjectZ, or GitHub Packages.

Latest release

2026.10.23.5 on GitHub includes self-contained Windows x64 tools and both debugger packages:

Extract the entire ZIP before running its EXE. .NET 10 is included. SHA256SUMS.txt accompanies the release downloads.

The installer links below are the previous 2026.10.17.1 standalone release.

Download and build

Get version 2026.10.17.1 from GitHub Releases. Windows x64 installers include .NET 10 and create branded Start menu shortcuts; desktop shortcuts are optional. Installation is per user and does not require administrator access.

Extract an entire portable ZIP before running its EXE. The native Shield launcher and all supporting files are included with Shield. The Project-Z download runs the included starter scene.

For developers: download heirowDebug.WPF.dll, heirowDebug.Injector.Hook.dll, or the NuGet package. The raw DLLs require a .NET 10 WPF host and their dependencies; using the package restores the WPF library dependencies automatically. The hook also needs the debugger DLL and the supporting DLLs from the debugger ZIP. SHA256SUMS.txt accompanies every release asset.

To build all projects, install the .NET 10 SDK and Visual Studio 2026 with the .NET desktop development and Desktop development with C++ workloads (the latter is required by the native heirowDotNetShield launcher), then run:

dotnet build .\heirowDebug.WPF.sln -c Release
.\heirowDebug.Injector\bin\Release\net10.0-windows\heirowDebug.exe

The solution also includes a Project-Z sample, the heirowDotNetShield protection tool, and a disposable WPF validation application.

In Visual Studio, open heirowDebug.WPF.sln and set heirowDebug.Injector as the startup project if an existing user setting selects the WPF library. Use Debug or Release with Any CPU; the Project-Z sample and native protection launcher select x64 internally.

Brand artwork and application icon variants are documented in Assets/README.md.

See Windows installation options for installer and portable usage.

Setup

Add the library to your WPF application from NuGet:

dotnet add package heirowDebug.WPF --version 2026.10.23.5

The older 2026.10.17.1 package is distributed with that GitHub release. Current package instructions are listed above. Existing callers of JackDebug.WPF must update their package reference and imports to heirowDebug.WPF.

C#

    using heirowDebug.WPF;

    var dw = new DebugWatcher(Game, true);
    dw.StartSession();

    // Optional global sampling profile. Fast (60 checks/second) is the default.
    Utils.Profile = Utils.DebugProfile.NearInstant;

VB.NET

    Imports heirowDebug.WPF

    Dim dw As New DebugWatcher(Game, True)
    dw.StartSession()

    ' Optional: NearInstant, Fast, Medium, Slow, or PowerSaving.
    Profile = DebugProfile.PowerSaving

Sampling profiles

Profile tunes both polling frequency and in-memory snapshot retention for all active watchers. Changes apply live: NearInstant uses 120 Hz, Fast 60 Hz, Medium 30 Hz, Slow 10 Hz, and PowerSaving checks once per second. You can still set FramesPerSecond directly when a custom rate is needed.

Show the debug window.

C#

    DebugWatcher.CreateDebugWindow();

VB.NET

    DebugWatcher.CreateDebugWindow()

Demo

Native Project-Z

A 9.6-second recording of the native inspector watching sample telemetry, with 16x AA/AF, labeled numeric/time axes, live accessor hooks, a frozen history range, a selected Position.X component, a spatial trace, boolean state bands and fading green tree text underglows.

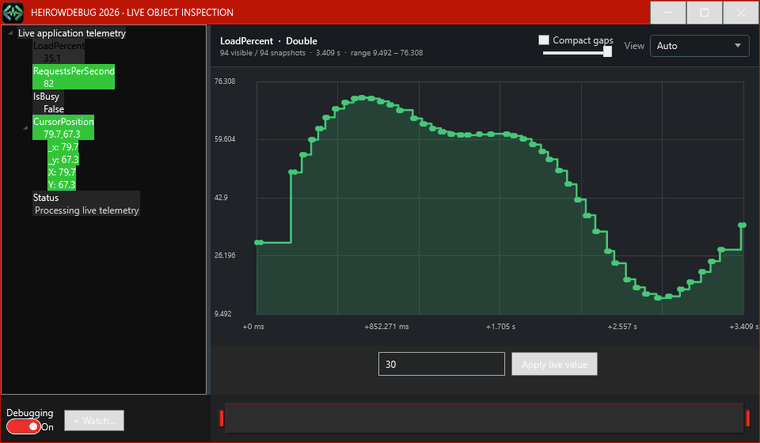

WPF

An 8-second recording of the actual .NET 10 debugger watching changing telemetry, captured with tools/LiveDemo. The optimized 760px GIF is 556 KB, about 82% smaller than the previous demo; no video player is required.

Inject into an existing WPF application build

heirowDebug.exe presents the accessible running WPF processes in a selector. Pick an application and use Restart + inject. The injector restarts that executable with a managed startup hook; once WPF creates its first window, the hook adds every instantiated application window as a root watcher and opens the live heirowDebug window on the application's WPF dispatcher. Windows created later are discovered by the watch picker and can be added without reinjection.

The preferred-startup-window override is optional. It only controls which window is listed first; it no longer limits the debug session to that one type. In the injected debugger, use + Watch... beside the Debugging switch to search live windows, loaded application types with static members, and reference-type objects held by static fields or properties. Static property getters are not executed while browsing: the selected member is resolved only when Add selected is pressed, and a null member is reported rather than watched. This does not require PDB files or other debug information.

dotnet build .\heirowDebug.WPF.sln -c Release
.\heirowDebug.Injector\bin\Release\net10.0-windows\heirowDebug.exe

The restart is required because this version uses .NET's supported launch-time hook rather than a native CLR profiler. Save work in the selected process first. The target executable and its source do not need to reference heirowDebug, and the injector does not copy files into the target application's directory. The target must be an accessible managed .NET 10 WPF process that honors .NET startup hooks. This version's .NET 10 hook cannot load into older runtimes; use the 2026.10.17.0 release for .NET 8 hosts. Native applications, WinForms-only applications, elevated processes inaccessible to the injector, and legacy .NET Framework hosts are not made injectable by debug symbols alone.

Injected-process performance safety

Injection defaults to 15 sampling passes per second with automatic recursive object expansion disabled. Sampling rotates through at most eight members per pass instead of rereading an entire large window continuously. Runtime guards limit a session to 24 watchers, six children per parent, two recursive levels, and 192 reflected members per watcher; ancestor identity checks stop cyclic object graphs from walking back into themselves. Compound reference values are inspected lazily when their tree node is expanded. These bounds can be adjusted through DebugWatcher and Utils when a smaller application needs a more aggressive profile.

Live visualizations

Select any value in the watcher tree to graph its recorded snapshots. Auto chooses a visualization that fits the runtime type: line and area charts for numbers, state bands for booleans, category bands for strings and enums, color strips for colors, four-channel plots for Thickness, and shape trails for Point, Vector, Size, and Rect values. Rectangle histories preserve each sample's position and dimensions, with color indicating time. Use Spatial overlay to plot geometry in its own coordinate system or Events to inspect individual changes. Time spacing is accurate by default, so long pauses remain visible with the prior value held across the gap. Enable Compact gaps and adjust its slider to blend back toward evenly spaced changes. The range slider limits the visible history.

Drag the divider beside the watcher tree to resize it. Compound values can be expanded to inspect a bounded list of their fields and readable properties, including useful framework structs whose default ToString() only reports a type name.

Protect a compiled .NET application

heirowDotNetShield creates a new protected deployment from the main application DLL of a Release build. It never rewrites the selected source deployment. The protected copy receives private-name and string-literal obfuscation, no PDBs, runtime feature switches that reject startup hooks/debugger support, and a native pre-runtime launcher that clears startup-hook requests and disables the .NET diagnostic IPC channel before CoreCLR is loaded.

dotnet build .\heirowDotNetShield\heirowDotNetShield.csproj -c Release
.\heirowDotNetShield\bin\Release\net10.0-windows\heirowDotNetShield.exe

Select the application's main .dll, choose an empty output directory outside the original deployment directory, and create the protected build. The output contains heirowDotNetShield-report.json and heirowDotNetShield.sha256. Sign the finished output after protection; rewriting invalidates an existing Authenticode signature. Strong-name signed inputs are rejected until a signing-key workflow is configured.

The disposable heirowDebug.ProtectedTestApp project is the validation target. In the verified protected build, reflection initiated by the application itself still works, while heirowDebug's DOTNET_STARTUP_HOOKS payload does not load and the standard dotnet-diagnostic-{pid} pipe is not created. These controls do not form an absolute boundary against an administrator, a modified native loader, or direct memory access on the same computer. Modern .NET does not provide a secure "allow reflection only when the caller is this DLL" permission once foreign code is already executing in the process.

Application updates

Desktop applications support an optional heirowUpdater.exe and heirowUpdater.json in their own installation directory. The companion starts with the application, waits until its instances exit, and checks the configured publisher over SocketJack. Available updates offer Update now or Postpone. Neither application startup nor updating requires a globally installed heirowInstaller.

Application code can call SocketJack.HeirowUpdaterBootstrap.CheckForUpdates() to open a manual check. Without the optional companion files, that call returns false and the application continues normally.

Contributing

Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change.
